Having never made an e-bike before, can Radon get it right first time?

Product Overview

Radon Render 10.0

Product:

Radon Render 10.0 longtermer: first impressions

Manufacturer:

Price as reviewed:

£4,942.00

Radon Render has a carbon front end and Bosch gen 4 motor. This Render 10.0 has RockShox suspension, 29in DT Swiss wheels and high-end components.

>>> Best electric mountain bikes: all you need to know

Radon Render 10.0 need to know

  • Bosch Performance Line CX Gen 4 equipped e-bike with 140mm travel and 29in wheels
  • Frame construction mixes a carbon front triangle with aluminium rear
  • Whopping 625Wh lithium ion battery, locks into down tube
  • 150mm RockShox Pike suspension fork boosts travel up front
  • Top-end build kit including SRAM G2 disc brakes, e-bike specific 165mm E13 Plus cranks and SDG components
  • SRP: €5,499.00 (approx £4900)

If you are up-to-date with my previous long-term test bikes, you’ll know the Render 10.0 is my third e-termer in a row. You’ll also know that I’ve had numerous reliability issues with my two previous e-bikes, one equipped with a Shimano motor and the other running a Brose. Fingers-crossed, the Render 10.0 will be slightly more reliable, because it has the latest Bosch Performance Line CX motor along with a Bosch 625Wh battery, display/control unit; the other bikes mixed-and-matched parts.

radon render

Bosch Performance Line CX motor, now with 85Nm of torque

I’ve ridden a couple of different Bosch-equipped e-bikes over the last few months and the Render 10.0 is the first to feature the Kiox display. Like the Shimano monitor, it’s mounted safely behind the handlebar, the difference being that the Kiox unit can be removed, which is handy when cleaning the bike. It also has a lot more features than the Shimano unit. But I do have one issue – I can’t read the battery indicator without my glasses, and I don’t need them for riding,
just reading.

radon render

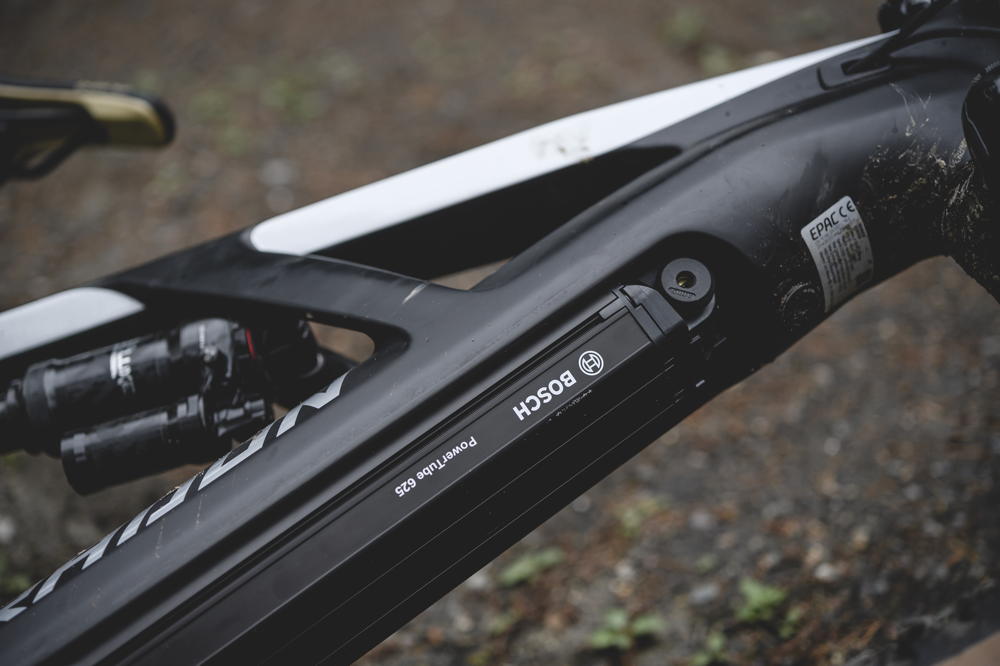

625Wh PowerTube battery sits in the down tube

The 625Wh PowerTube battery is removable, you just need to loosen a bolt at the top of the down tube, un-hook the rubber leash at the base, then remove the plastic cover and unlock the battery so it pops out. This is great, because it means I can take the battery indoors for charging, or clip in a fresh one on the go to extend the play. What you can’t see when looking at the bike on the Radon website though, is that the battery cover is actually pretty flimsy. It has also worked loose once during a ride and the battery now rattles in the housing. To stop the rattle, I’ve glued a piece of foam to the inside of the plastic cover but this means it sits a little proud of the down tube. I suppose this is one of the pitfalls of buying a bike sight-unseen.

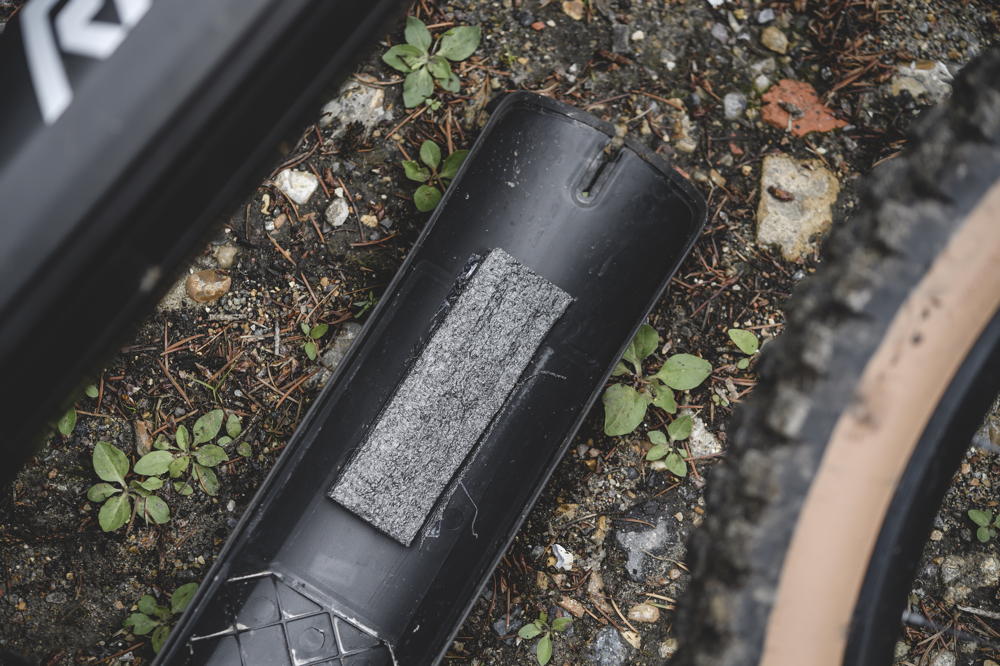

Foam strip back quieted battery compartment rattle

I’m not going to go into a massive amount of detail about the parts here, but I want to mention a couple of things I’m already considering upgrading and why. The SDG Radar saddle is a bit narrow for my sit bones (wide ass), the SDG Slater grips are too hard and, while the Maxxis Minion DHF/DHR II skinwall tyres look great against the monochrome colour scheme, they are dual-compound with a slightly harder rubber than my preferred 3C MaxxTerra. Now, if you were buying a bike from a dealer, you could probably get it to swap all of these parts out, but again, that’s not possible with an online bike brand.

radon render

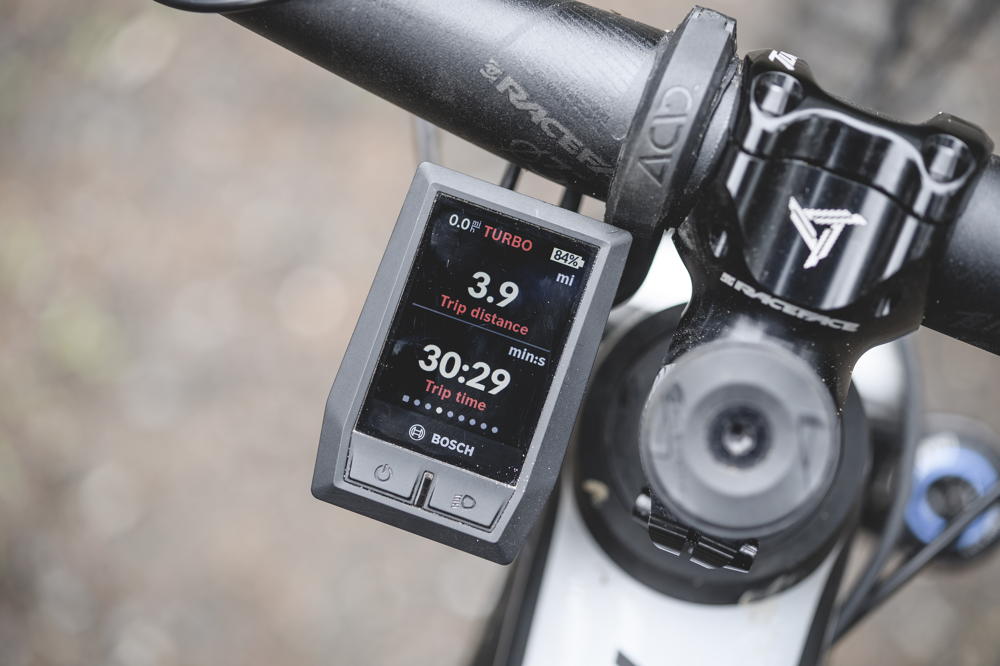

Removable Kiox display unit

I’ve only done 50 miles on the Radon Render 10.0 so far, but I’ve got to say it’s lightning quick. This may be the faster-rolling tyres, but the Bosch motor has a lot of power and, if I spin the gears, rather than churn along, it really pays you back in kind. All e-bikes do this to a degree, but some feel livelier than others, and the Render 10.0 is one of them. Whether I’m going to have to sacrifice some of that speed for increased grip remains to be seen, but I’ll know more next month after I’ve swapped the tyres.

SRP: €5,499.00

Details

Frame:Carbon/alloy, 140mm travel
Shock:RockShox Super Deluxe Ultimate
Fork:RockShox Pike RC, 150mm travel
Motor:Bosch Performance Line CX
Battery:Bosch PowerTube 625Wh, removable
Display:Bosch Kiox
Wheels:DT Swiss H1700 Spline 29, Maxxis Minion DHF/DHR II 29x2.5/2.4in tyres
Drivetrain:E13 Plus E-spec 34t chainset, SRAM X01 Eagle r-mech and shifter
Brakes:SRAM G2 RSC, 200/180mm
Components:Race Face Turbine R 800mm bar, Turbine 50mm stem, SDG Tellis 150mm post, SDG Radar saddle
Sizes:M, L, XL
Weight:22.5kg (49.6lb)
Size tesed:L
Head angle:65.3°
Seat angle:75.5°
BB height:335mm
Chainstay:460mm
Front centre:785mm
Wheelbase:1,245mm
Down tube:730mm
Top tube:605mm
Reach:460mm
Contact:radon-bikes.de
