The original Santa Cruz Hightower converted a lot of riders to 29ers, does the new version have the same significance?

Product Overview

Overall rating:

Score 10

Santa Cruz Hightower CC


  • Everything you could want from a trail bike


  • Missing an upper chain guide


Santa Cruz Hightower CC review


Price as reviewed:


The original Santa Cruz Hightower converted a lot of riders to 29ers, does the new version have the same significance, or will it languish in the shadow of the Megatower?

>>> Best mountain bike 2019: all you need to know

Santa Cruz Hightower

Santa Cruz Hightower CC review

Before the version 2 came out earlier this year, the Hightower used a similar design to the Intense Primer, with the shock driven by a short swinglink beneath the top tube. That’s all changed now, with almost the entire Santa Cruz range adopting a lower link-driven VPP arrangement first seen on the Santa Cruz V10 downhill bike. Simply put, by using the lower link to drive the shock, the leverage rate remains more consistent throughout the stroke, so it’s easier to tune the shock and set-up the suspension.

To accommodate the shock, the frame uses a pierced seat tube design, where the RockShox Super Deluxe passes through a moulded tunnel and anchors to the base of the down tube. There’s enough room for a bottle cage within the main triangle, but the compression threshold lever is much harder to reach when climbing, and it’s more difficult to see the red O-ring when setting up the sag.

Santa Cruz Hightower

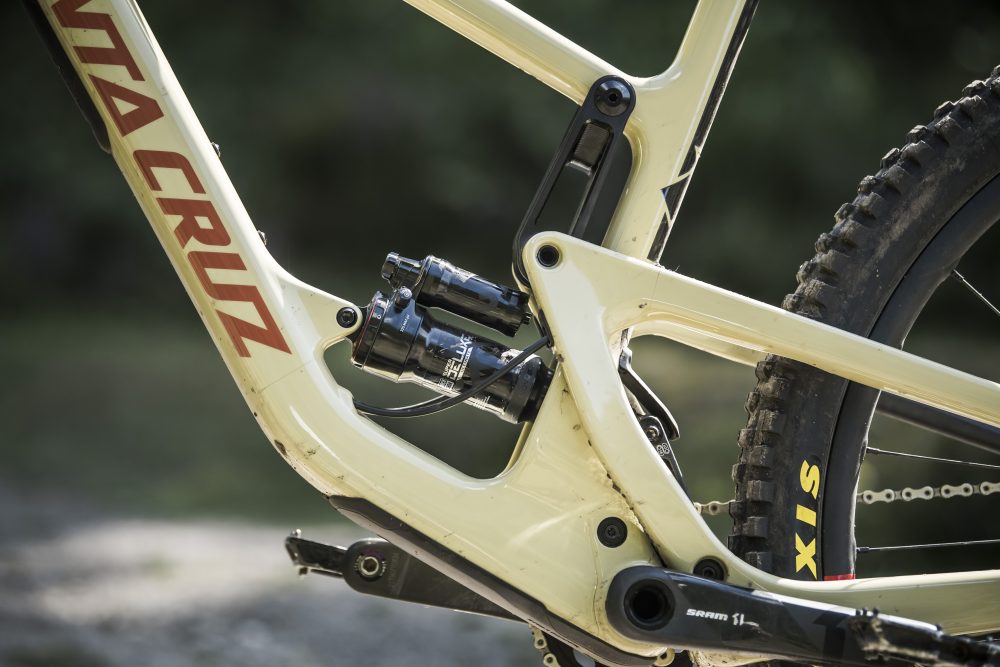

Pierced seat tube houses RockShox Super Deluxe shock with 140mm of travel


Getting the 150mm travel RockShox Lyrik Ultimate fork set up is simple. We ran around 10 per cent more air pressure than recommended by the chart printed on the left leg, with the rebound almost wide open and added a couple of clicks of low speed compression damping.

It’s the same story with the shock; we found our recommended pressure on the Santa Cruz website, set the sag and the damping and didn’t touch it again for the duration of the test.

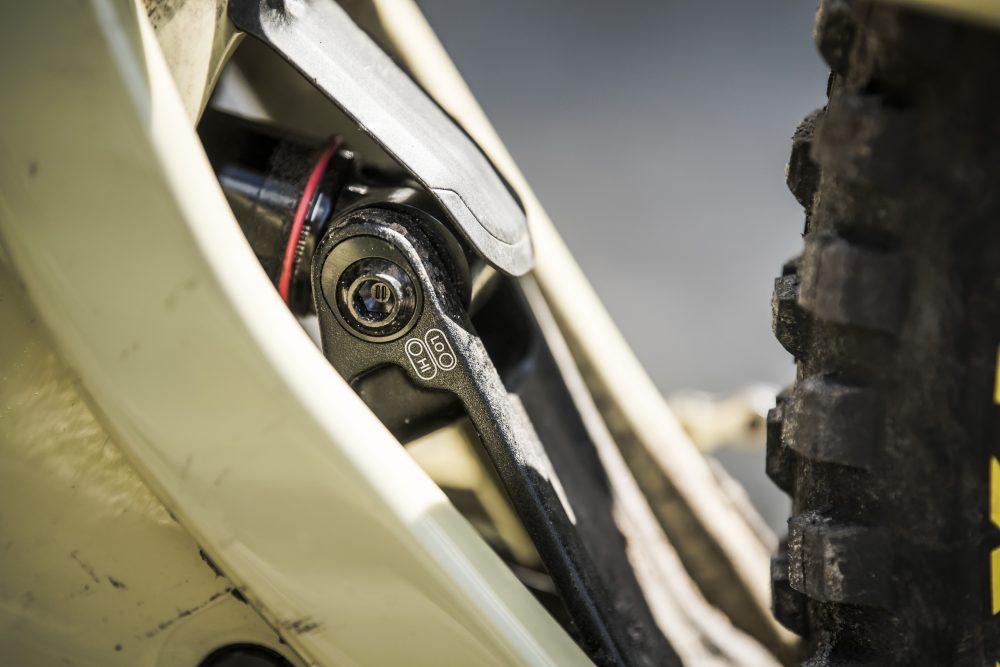

Like Intense, Santa Cruz uses a flip chip at the rear shock mount to let you tune the geometry and suspension feel. This one only has around half as much effect though, and it is fiddly to access. To stop the chip falling into the gap between the swingarm and the frame, we’d recommend holding it in place with a tyre lever when you remove the shock bolt.

Santa Cruz Hightower

SRAM drivetrain put in a flawless performance


The full SRAM spec on the Hightower CC X01 might seem run-of-the-mill, but it works. The Code brakes have a little less initial bite and a firmer spring than the XT models fitted to the Intense, but they stop just as well without any consistency issues. Shifting was precise and the dinky 30T chainring eased the strain on grinder climbs.

Scattered around the bike are a selection of details that show how much thought has gone into the Hightower. There’s a small mudguard to protect the shock from dirt, there are bearings in the rear shock eyelet to reduce friction, the Palmdale grips and Maxxis Minion DHRII Wide Trail 3C tyres are excellent, and oversize Torque Caps fitted to the DT front hub maximize steering stiffness.

Santa Cruz Hightower


The Hightower is one of those bikes that just gets on with the task in hand and delivers results without any fuss or fanfare. It manages to entice and excite at every turn, and the more we rode it, the more we appreciated its abilities.

First the climbs. Although the actual seat angle is slacker than the Intense, the effective seat angle at our max saddle height is 2° steeper, so you sit further forward over the bottom bracket. Allied to the supportive suspension means it’s more efficient when pedalling. There’s more stability too, so unless you want to mash away out of the saddle, there’s no need to stretch down for the compression lever.

Santa Cruz Hightower

Mudguard protects the shock from the worst filth

Tip in to a descent, no matter what gradient, and the Hightower instantly feels predictable and engaging. You can lean it in at MotoGP angles and load up both tyres for carving turns, or push into the travel to generate speed or pop to clear obstacles. Wherever you are in the stroke, it feels consistent, so you never have to second-guess what the suspension in doing. That leaves you headroom to concentrate on pushing harder, braking later or hitting more challenging lines. And there’s more leg room too, because that saddle drops completely out of the way, so you can be much more dynamic than on the Intense without getting tangled up. So much so that we could easily move up a size to the XL frame and still run a 170mm dropper with plenty of standover clearance.

Santa Cruz Hightower


The new Hightower is alert, rewarding, inspiring and refined – all the things that you'd hope for at this price – and it's almost impossible to find a chink in its armour, whatever kind of terrain you put in front of it. Previous complaints, such as the US-biased cable routing, have finally been fixed on this latest model, and Santa Cruz has even made the chainstays longer on the XXL frame so that taller riders won't get left hanging off the back of the bike. It feels right from the very first pedal stroke, and encapsulates the versatility that defines every great trail bike.


Frame:CC carbon, 140mm travel
Shock:RockShox Super Deluxe Ultimate
Fork:RockShox Lyrik Ultimate RCT3, 150mm travel
Wheels:DT Swiss 350 hubs, Race Face ARC30 rims, Maxxis Minion DHR II Wide Trail 3C EXO 29x2.4in tyres
Drivetrain:SRAM X1 Eagle Dub chainset, 30T, 170mm, SRAM X01 Eagle r-mech and shifter
Brakes:SRAM Code RSC, 180/180mm
Components:Santa Cruz AM carbon 800mm bar, Race Face Aeffect 50mm stem, RockShox Reverb Stealth 170mm dropper post
Sizes:S, M, L, XL, XXL
Weight:13.25kg (29.2lb)
Size tested:L
Head angle:64.6°
Seat angle:68.6°
BB height:336mm
Front centre:793mm
Down tube:741mm
Top tube:619mm
